GNEE is a trusted global supplier specializing in high-quality ASTM A269 TP316Ti Stainless Steel Seamless Tubes. With over 18 years of industry experience, we have served customers in more than 30 countries, with an annual export volume exceeding 1000 tons. Our products are supported by industry-leading certifications, including ISO 9001, PED, and NACE MR0175.

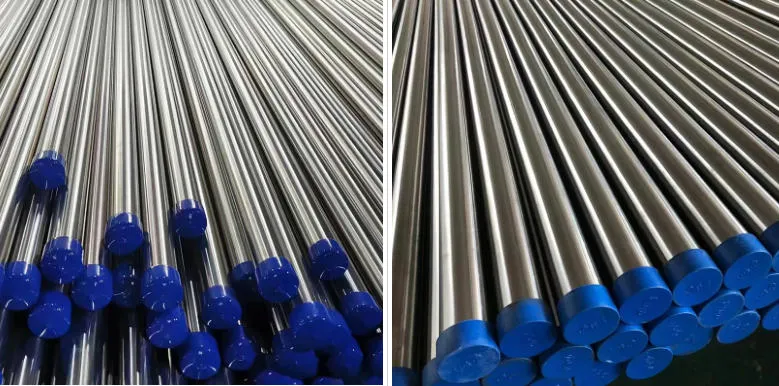

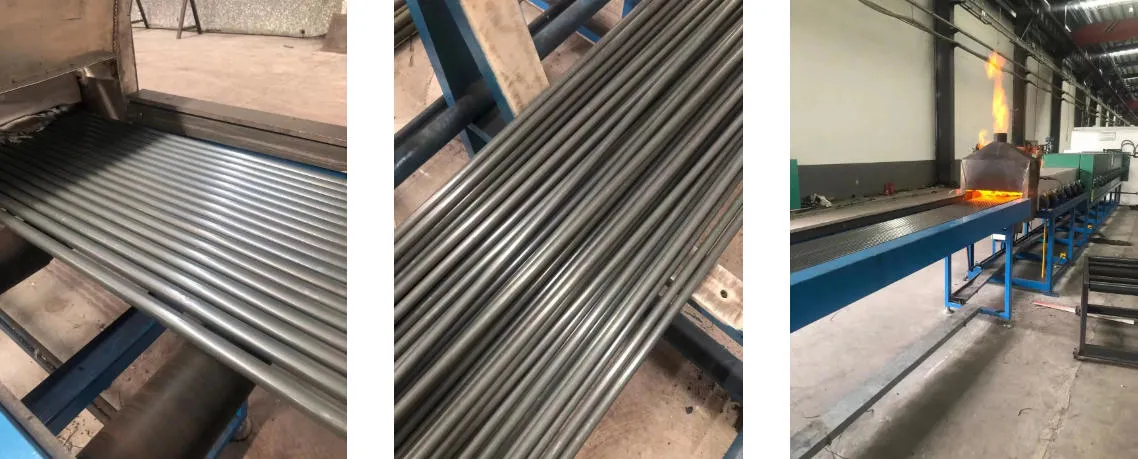

ASTM A269 TP316Ti Stainless Steel Seamless Tube is specifically designed for instrumentation system applications. Our TP316Ti seamless tubing contains 0.40–0.60% Titanium (Ti), which effectively prevents chromium carbide precipitation. Through cold working and solution annealing processes, we strictly control the hardness to ≤HB 190, and provide flaring and flattening test videos. Additionally, we ensure tensile strength ≥ 515 MPa, yield strength ≥ 205 MPa, and elongation ≥ 35%, ensuring the tubes' durability under high-pressure and thermal cycling conditions.
ASTM A269 TP316Ti seamless tubes have an outer diameter tolerance of ±0.08mm, wall thickness tolerance of ±0.06mm, and straightness of ≤0.3mm/m, providing precise dimensional control. The inner surface finish is polished to Ra ≤ 0.4μm, which minimizes fluid friction, eliminates contamination risks, and maintains the high purity required for process instrumentation systems.
ASTM A269 TP316Ti Stainless Steel Seamless Tube specification
| Item | Stainless Steel Seamless Tube/Pipe | |
| Standard | ASTM A213,A312,ASTM A269 | |
| Material | 300 Series: 304, 304L, 304H, 316, 316L, 316H, 316Ti, | |
| Surface | Polishing,annealing,pickling,bright | |
| Shape | Round Pipe/Tube | |
| Type | Cold rolled | |
| Application | Heat Exchanger, Chemical & Petro-chemical, Onshore & Offshore Oil & Gas, Power Plant, Ship building, Pulp & Paper, Pharmaceutical | |
| size | Length | 6m or Customized |
| Outer diameter | OD: 12.7mm~630mm WT: 1mm~50mm | |
| Delivery time | Prompt delivery or as the order quantity. | |
| Package | Standard export seaworthy package,or as required | |
Chemical Composition of 316TI Stainless Steel Pipes and Tubes
| Element | Min | Max |
| C | - | 0.08 |
| Si | - | 0.75 |
| Mn | - | 2 |
| P | - | 0.45 |
| S | - | 0.03 |
| Cr | 16 | 18 |
| Mo | 2 | 3 |
| N | - | 0.1 |
| Fe | Balance | |
| Ni | 10 | 14 |
| Ti | 5x%(C+N) | |
Mechanical Properties of 316TI Stainless Steel Pipes and Tubes
| Temper | Annealed |
|---|---|
| Tensile Rm | 75 ksi (min) |
| Tensile Rm | 515 MPa (min) |
| R.p. 0.2% Yield | 30 ksi (min) |
| R.p. 0.2% Yield | 205 MPa (min) |
| Elongation (2" or 4D gl) | 35 % (min) |
316TI Stainless Steel Pipes and Tubes Physical Properties
| Specific Heat (0-100°C) | 500 J.kg-1.°K-1 |
| Thermal Conductivity | 14.6 W.m -1.°K-1 |
| Thermal Expansion | 16.5 mm/m/°C |
| Modulus Elasticity | 193 GPa |
| Electrical Resistivity | 7.4 μohm/cm |
| Density | 7.99 g/cm3 |
SS 316Ti Tube ASTM A269 Tolerances
|
Size |
Tolerances, Inches |
|||
|
OD, |
Wall |
Ovality |
Cut Length |
|
|
Less than 1/2 |
±0.005 |
±15% |
-- |
+1/8 |
|
Over 1/2 to 1-1/2 |
±0.005 |
±10% |
–0.065 |
|
|
Over 1-1/2 to 3-1/2 |
±0.010 |
±10% |
–0.095 |
+3/16 |
|
Over 3-1/2 to 5-1/2 |
±0.015 |
±10% |
–0.150 |
|
|
Over 5-1/2 to 8 |
±0.030 |
±10% |
-- |
|
ASTM A269 Tp 316Ti SS Pipe Price list
| Description | Price in USD |
|---|---|
| 11mm 12X12 OD Square Stainless Steel Tube Pipes | USD 4.00 |
| Welded and seamless 316ti 18 inch 24" diameter stainless steel pipe price | USD 1200 |
| 316Ti 6 Inch Schedule 40 Stainless Steel Pipe Price | USD 1500 |
| 25mm 32mm diameter 316ti stainless steel pipe price | USD 1450 |
| DN15 DN50 DN80 316Ti Stainless steel pipe | USD 1500 |

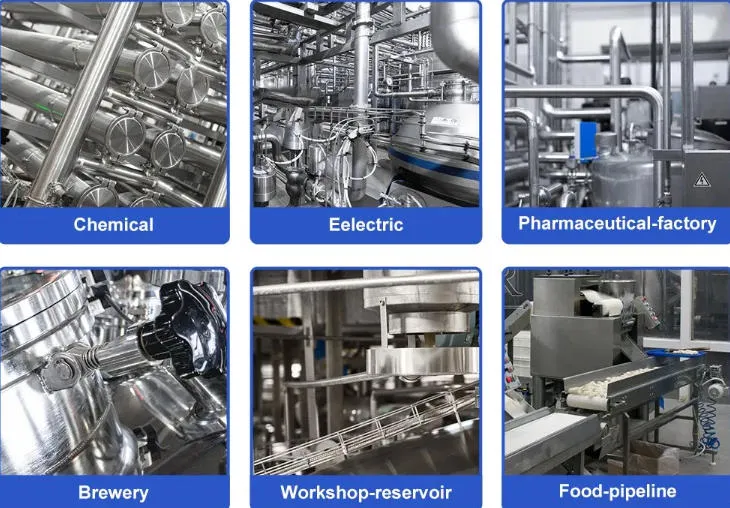

316TI Stainless Steel Pipes and Tubes Applications
1. Food preparation equipment particularly in chloride environments.
2. Laboratory benches & equipment.
3. Coastal architectural panelling, railings & trim.
4. Boat fittings.
5. Chemical containers, including for transport.
6. Heat Exchangers.
7. Woven or welded screens for mining, quarrying & water filtration.
How is 316Ti stainless steel pipe welded?
316Ti stainless steel pipe is best welded using TIG (GTAW) or MIG (GMAW) processes, utilizing titanium-stabilized filler metals (similar to 316L or 316Ti rods) to prevent sensitization at high temperatures.
How do you choose between 316L and 316Ti stainless steel pipes?
For general and highly corrosive applications particularly when welding thick-section materials the use of 316L (low-carbon grade) is recommended. For high-temperature applications (where temperatures exceed a specific threshold), 316Ti (titanium-stabilized grade) is advised; if the operating temperature exceeds 450°C, 316L carries a risk of sensitization, whereas TP316Ti, through titanium stabilization, ensures complete immunity to intergranular corrosion.
We maintain a standing inventory of 20 tons of TP316Ti raw tubing, enabling us to shorten our production lead times to 25–30 days-two weeks faster than the industry average.
Stock Orders: 3–7 days (lead time extends if additional testing is required).
New Production: 30–45 days (depending on the availability of raw tubing stock).
Once your order is confirmed, we will provide you with a detailed production schedule. We send production photos or videos every Friday-covering the cold drawing, annealing, and inspection stages-allowing you to monitor your delivery timeline in real-time, even from overseas.

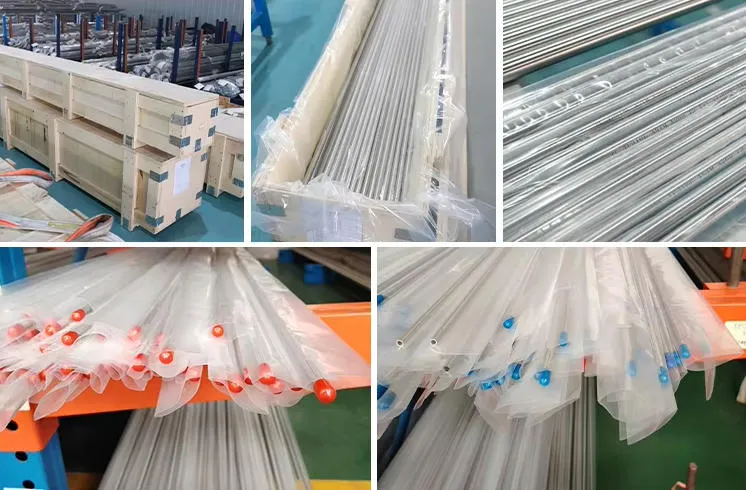

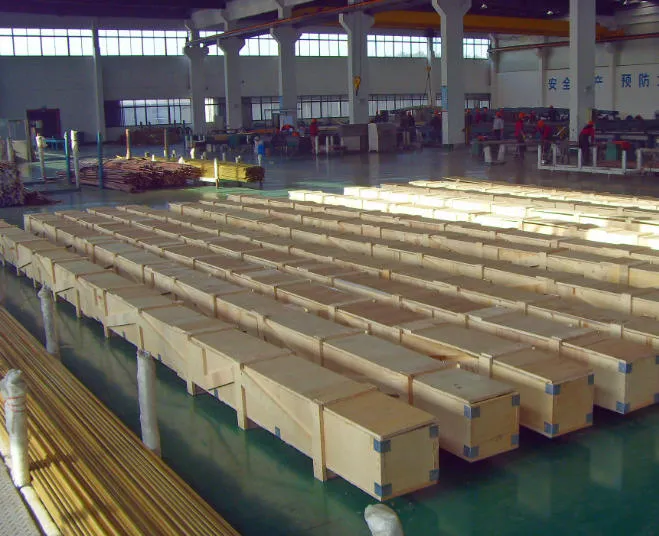

ASTM A269 tubing typically features thin walls and is highly susceptible to deformation under pressure during long-distance sea transport. We exclusively utilize reinforced plywood crates, equipped with internal U-shaped support frames to prevent the tubing from bending under its own weight. This ensures that the 6-meter or 12-meter lengths of tubing arrive at your site with their straightness in perfect compliance with applicable standards.
