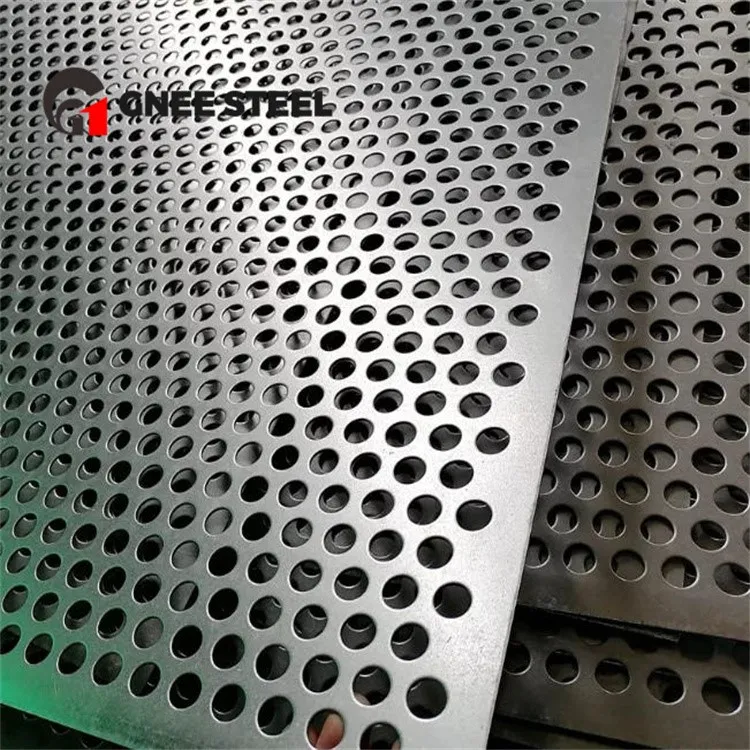

GNEE, as a supplier and processor of stainless steel perforated sheets, exports 500 tons annually to overseas countries. Our 304 perforated stainless steel sheets are manufactured according to ASTM A240/EN 10088-2 standards, with a chemical composition of 18.0–20.0% Cr, 8.0–12.0% Ni, and C ≤0.07%. They possess excellent corrosion resistance, rust prevention, and food-grade safety, making them suitable for both indoor and outdoor applications.
Our 304 perforated sheets feature precise perforation parameters: hole diameter ranging from 0.5mm to 50mm, hole spacing (center distance) ranging from 1mm to 100mm, and a perforation rate of 10%–60% (customizable). The steel sheet has a tensile strength ≥515 MPa, yield strength ≥205 MPa, elongation ≥40%, and good ductility and formability, facilitating cutting, bending, and welding.
Our SS304 perforated plates are available in thicknesses of 0.3mm–10mm, widths of 1000mm–1500mm, and lengths of 2000mm–3000mm. Surface treatments include 2B, No. 4, and brushed (Ra≤0.8μm), offering easy cleaning and fingerprint resistance.
Each plate undergoes rigorous testing for pore size accuracy (±0.05mm), flatness, and corrosion resistance, and comes with a factory test certificate (MTC). This product is widely used in filtration, ventilation, decoration, and food processing, combining functionality, durability, and aesthetics.
304 perforated plate stainless steel Plate specifications
| Material | Mild Steel, Pre Galvanized Steel, Aluminium, Stainless Steel, Carbon Steel etc. |
| Specifications | Stainless Steel, Hot Rolled Steel, Cold Rolled Steel, Aluminum plate |
| Hole Pattern | Round hole, Square hole, Slotted hole, Decorative hole, Architectural hole etc. |
| Thickness | 0.5mm-4mm (additional thickness are available on request) |
| Hole size | 2mm-50mm (other hole sizes are also available) |
| Arrangement Mode | straight row, staggered |
| Margins | Finished end Pattern, Unfinished end Pattern, No Margin |
| Width | 1m, 1.22m,1.5m, 2m etc. |
| Length | 2m, 2.44m, 3m etc. |
| sheet size | 1m*2m, 1.22m*2.44m, 1.5m*3m(additional sizes are available on request) |
| Application | security, sifting, machinery guards, enclosures, sign panels, noise reduction etc. |
| Note | Perforations must be the same or larger in size than the material thickness. |
Chemical Composition & Mechanical Properties (SS 304)
Ensuring the material grade meets international standards for corrosion resistance.
| Grade: 304 | C (%) | Mn (%) | Si (%) | P (%) | S (%) | Cr (%) | Ni (%) |
| Min | - | - | - | - | - | 18.00 | 8.00 |
| Max | 0.08 | 2.00 | 0.75 | 0.045 | 0.030 | 20.00 | 10.50 |
| Mechanical Properties | Value |
| Tensile Strength (MPa) | ≥ 515 |
| Yield Strength (MPa) | ≥ 205 |
| Elongation (%) | ≥ 40 |
| Hardness (HB/HRB) | ≤ 201 / 92 |

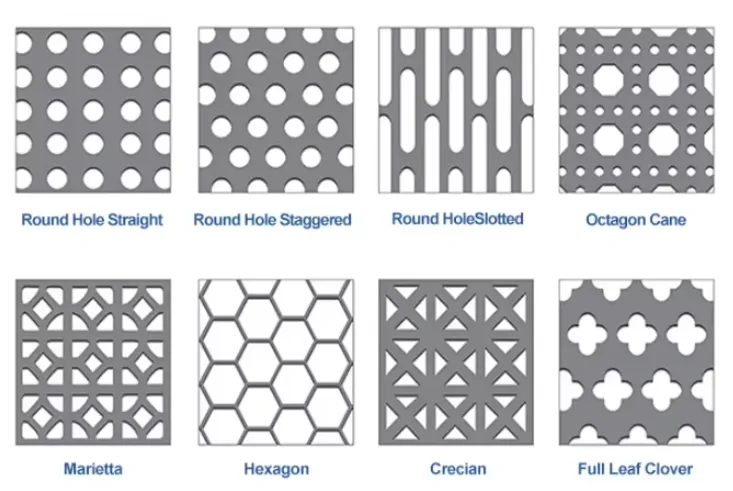

In addition to standard round holes, Gnee offers square, hexagonal, slotted, and decorative patterns. We can customize the "edges" (unperforated edges) to your specific requirements for easy framing or welding.
Common Perforation Patterns & Open Area %
For engineering calculations, the Open Area is critical for airflow or liquid filtration.
| Hole Shape | Arrangement | Hole Size (D) | Pitch (P) | Open Area (%) |
| Round | 60° Staggered | 1.0 mm | 2.0 mm | 23% |
| Round | 60° Staggered | 2.0 mm | 3.5 mm | 30% |
| Round | 60° Staggered | 5.0 mm | 8.0 mm | 35% |
| Round | Straight Row | 10.0 mm | 15.0 mm | 44% |
| Square | Straight Row | 8.0 mm | 10.0 mm | 64% |
| Hexagonal | Staggered | 6.0 mm | 6.5 mm | 79% |

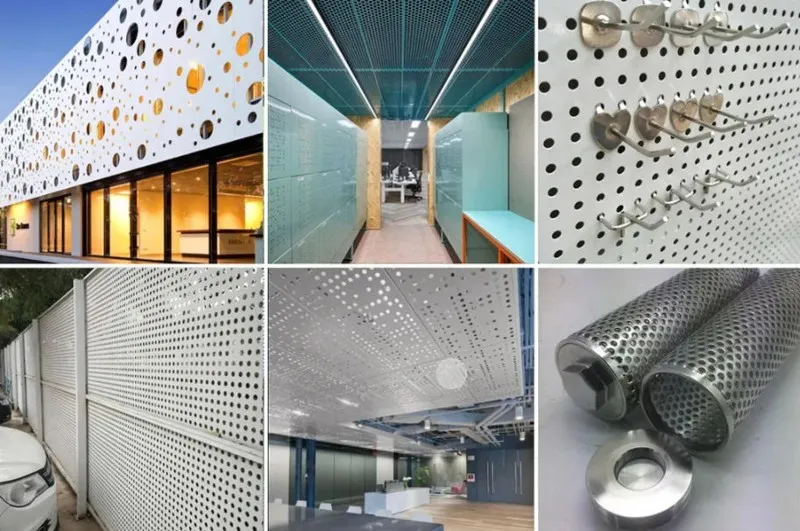

304 perforated plate stainless steel Plate application

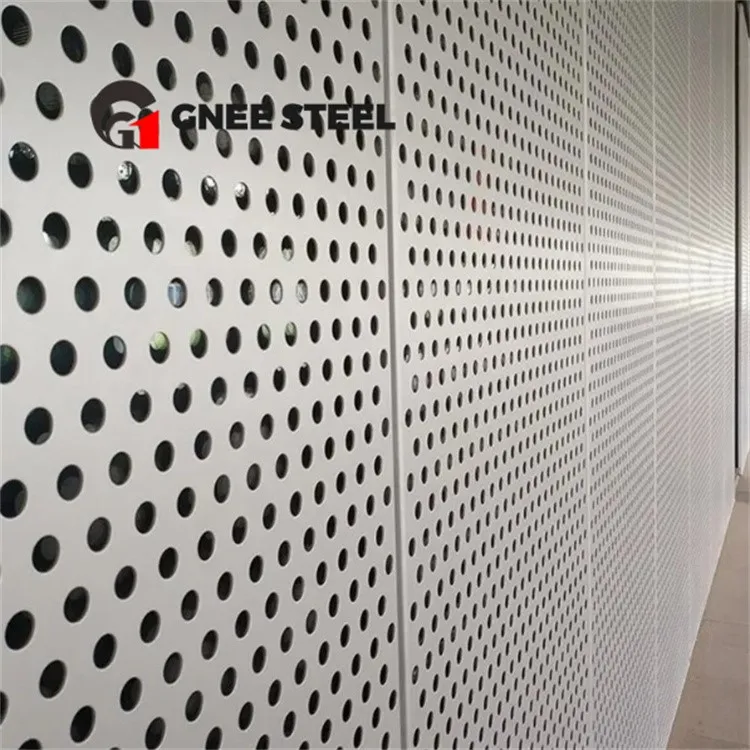

Architecture and Design: Cladding, facades, architectural partitions, elevator panels, sunshades, and decorative ceilings.
Industrial and Processing: Filtration systems, vibrating screens, conveyor belts, and ventilation equipment in HVAC systems for mining and chemical processing.
Food and Beverage: Drying trays, filters, and food processing equipment.
Automotive and Marine: Speaker grilles, muffler internal components, automotive exhaust system parts, and architectural trim.
Safety and Security: Machine guards, railings, and safety panels.
We offer internal bending, edge crimping (for perforated tubes), laser cutting, and surface treatments (PVD coloring, powder coating, or electropolishing).
We use heavy-duty wooden crates and specialized corner protectors, combined with waterproof paper and PVC film.

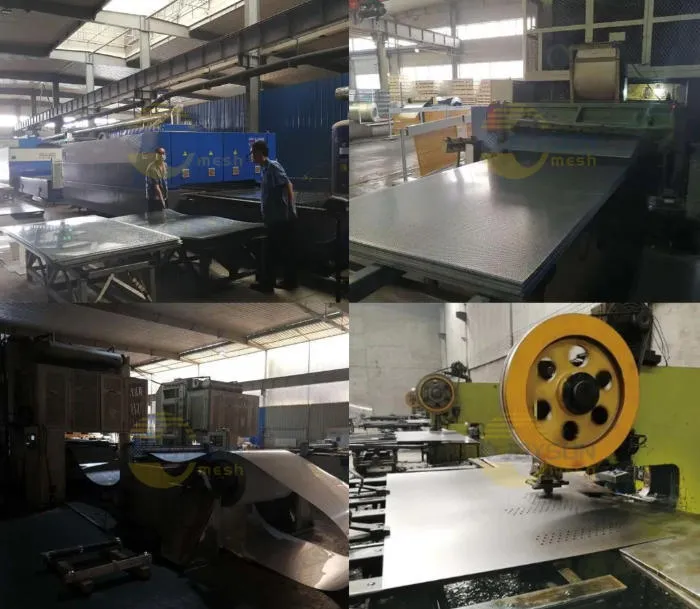

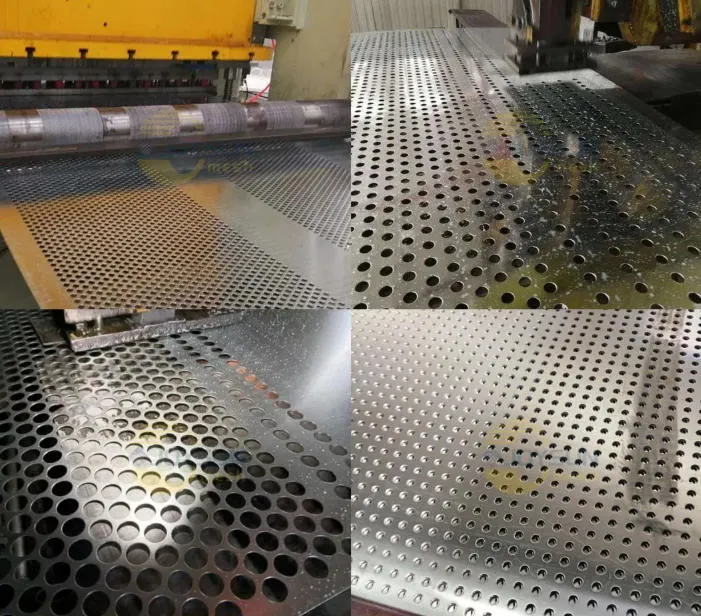

Each Gnee perforated sheet undergoes precision leveling after punching. We guarantee ultra-flat sheets suitable for direct welding or building installations, saving you on-site time and labor costs. Our 304 perforated sheets offer superior corrosion resistance and ductility, and each batch comes with a formal steel mill test certificate (MTC).
