What is a 310S 2B stainless steel plate?
310S 2B stainless steel plate is a low-carbon, heat-resistant austenitic alloy (containing 25% chromium and 20% nickel) featuring a cold-rolled, annealed (2B) finish that presents a smooth surface with a moderately reflective luster. This material is specifically engineered for high-temperature applications reaching up to 1150°C (2100°F); its low-carbon composition effectively minimizes brittleness, making it an ideal choice for furnace components, heat exchangers, and chemical processing equipment.
310 Stainless Steel plate Chemical Composition Standard
| Elements | Carbon | Manganese | Silicon | Phosphorus | Sulfur | Chromium | Molybdenum | Nickel | Iron |
| Stainless Steel 310 | 0.015 Maximum | 2.0 Maximum | 0.15 Maximum | 0.020 Maximum | 0.015 Maximum | 24.00 – 26.00 | 0.10 Maximum | 19.00 – 21.00 | 54.7 Minimum |
| Stainless Steel 310S | 0.08 Maximum | 2.0 Maximum | 1.00 Maximum | 0.045 Maximum | 0.030 Maximum | 24.00 – 26.00 | 0.75 Maximum | 19.00 – 21.00 | 53.095 Minimum |
UNS S31000 Strip Mechanical Properties Chart
| Density | Tensile Strength | Melting Point | Elongation | Yield Strength |
| 7.9 gram per cm | Psi=75000, MPa=515 | 1402 °C (2555 °F) | 40 % | Psi= 30000, MPa=205 |
ASTM A240 310S SS Plate Melting Point
| Grade | Melting point |
|---|---|
| 310 Stainless Steel Sheet | 2650°F |
Creep properties of SS 310 Sheet
| Temperature | Creep Strain MPa | Creep Rupture MPa | |||||
|---|---|---|---|---|---|---|---|
| °C | °F | 1000 H | 10000 H | 100000 H | 1000 H | 10000 H | 100000 H |
| 700 | 1292 | 50 | 35 | 20 | 80 | 45 | 20 |
| 1000 | 1832 | 5 | 3 | 1.5 | 9 | 4 | 2 |
| 800 | 1472 | 20 | 10 | 8 | 35 | 20 | 8 |
| 900 | 1652 | 10 | 6 | 3 | 15 | 10 | 5 |
| 600 | 1112 | 120 | 100 | 40 | 200 | 140 | 80 |
310 vs. 310S Stainless Steel Plate
Both 310 stainless steel plate (with a maximum carbon content of 0.25%) and 310S stainless steel (with a maximum carbon content of 0.08%) are high-temperature austenitic alloys. The key difference between the two is that 310S is a low-carbon version of 310, specifically designed to minimize carbide precipitation. Although both materials exhibit exceptional oxidation resistance and can withstand temperatures up to 1150°C (2100°F), 310S stainless steel is typically the preferred material in applications involving high-temperature welding.
Applications of 310S 2B Stainless Steel Plate
Heat Treatment & Furnace Components: Annealing covers, industrial ovens, furnace linings, burners, combustion chambers, fire boxes, and door frames.
Petrochemical and Chemical Processing: Tube hangers for petroleum refining and steam boilers, pressure vessels, and components handling hot sulfuric compounds.
Power Generation & Industrial Processing: Coal gasifier internal components, fluidized bed combustors, pulverized coal burners, and sintering equipment.
310S 2B Stainless Steel Sheet Supplier
Thickness: 0.3mm – 3.0mm (typical 2B cold-rolled range); select specifications available up to 6.0mm.
Width: 1000mm, 1219mm (4 ft), 1250mm, 1500mm (5 ft).
Length: 2000mm, 2438mm, 3000mm, 6000mm; or supplied as cut-to-length sheets based on specific requirements.
Format: Available as full sheets, leveled sheets, or coils.
100% PMI Testing: Every sheet undergoes spectroscopic analysis prior to shipment, with a specific focus on verifying Nickel (Ni 20%) and Chromium (Cr 25%) content.

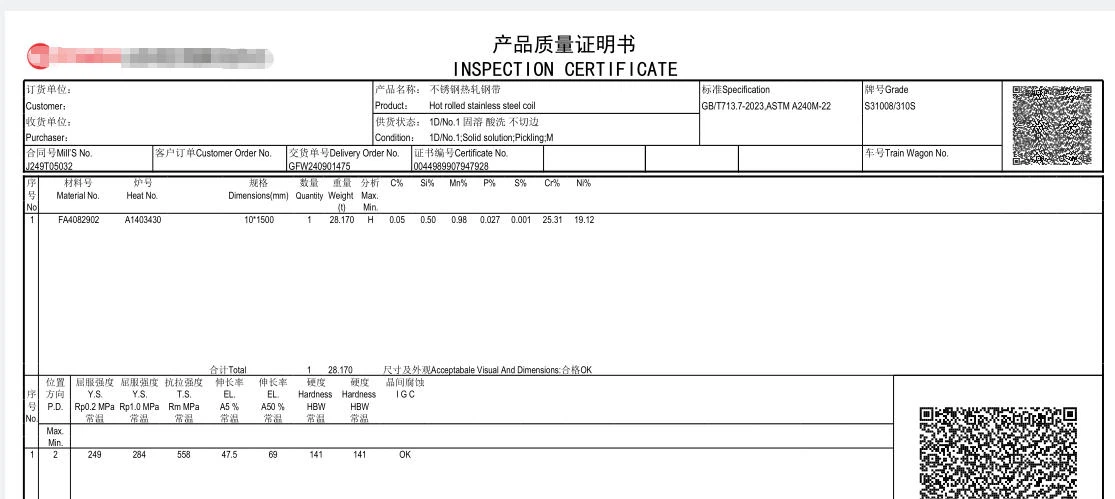

Material Test Certificate (MTC): A comprehensive certificate compliant with EN 10204 3.1 is provided, including high-temperature tensile properties upon request.
Third-Party Inspection: We welcome on-site inspections by agencies such as SGS, TUV, and BV to conduct spot checks on thickness, surface quality, and chemical composition.
Packing & Shipping
Precision Packaging: For 2B thin sheets, we utilize reinforced, fumigated wooden pallets; interleaving paper is placed between sheets to prevent surface adhesion and scratching, and the package is wrapped in waterproof paper with metal edge protectors.
Sea Freight: Available via 20-foot containers (FCL) or Less than Container Load (LCL).
Air Freight: Express/air cargo services are available for urgent repair parts.
