Steel coilgalvanized

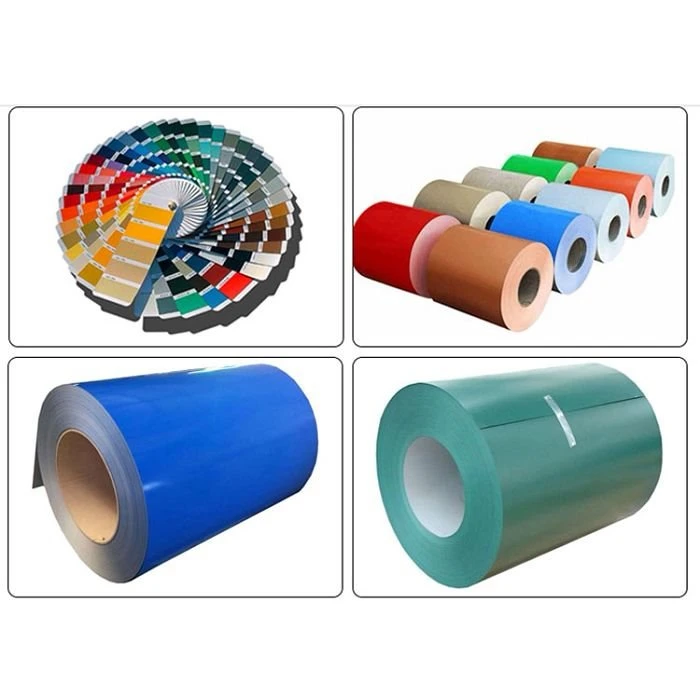

Color Coated Steel Coil
Steel coil
Details
Subject | SGCC, DX51D + Z, DX52D + Z, DX53D + Z, DX54D + Z, Q195, Q235 | Color | Blue, orange, red, yellow or other option |
Style | Bilateral or Unilateral | Surface treatment | Powder Coated, Galvanized, Hot Dip Galvanized, Zn Galvanized |
Coil ID | 508mm Or 610mm | Product name | PPGI Prepainted Galvalume Steel Coil |
Use | Warehouse, Pharmaceutical Industry | Size | Necessary |
Characteristic | Corrosion protection, antioxidant | App | Store; Industry; transportation, packaging and storage, industrial packaging |
Product details
PPGI is galvanized steel, also known as coated steel, colored steel, etc., always with a hot dip zinc coated steel substrate.
PPGI is short for Prepainted Galvanized Steel, which is a product made by chemical treatment, coating, and baking. It not only has mechanical resistance and easy-to-form peculiarity, but also has a decorative character and the corrosion of organic materials.
Information
Steel grade | Steel grade |
Surface treatment | covered |
App | |
Zinc | Zinc: 30g ~ 275g |
Coating | Upper: 15 ~ 25 μm; Back: 5 ~ 15μm |
Painting | Slightly oiled / dry |
Broad | 600 ~ 1250mm |
port | Shanghai / Tianjin |
Containers and packaging | International standards |
Source | China |
Standard | ASTM, JIS, GB, AISI, DIN, BS |
Certification | ISO, SGS, BV, RoHS, IBR |
Technology | Cold rolled steel |
Edge | chopped up |
Coil identification | 508mm / 610mm |
Coil weight | 3-8 tons |
Subject | SGCC, Sgch, Dx51d, A653 |
Sequin | Regular / Zero / Large |
Mark | Gnee |
Specification | 0.19mm ~ 1.50mm |
HS code | 7210700000 |
Description
Specification | |
Thickness | 0.13mm TCT up to 1.2mm TCT |
Width | 600mm up to 1250mm |
Base zinc | 30-275G/M2 |
Color | Ral No. or customized |
Rule | No.1, Hard (90 HRB; G500-G550) No.2, Commercial grade (70 HRB; G300-G350) |
Coil weight | 3MT - 8MT |
Coil ID | 508mm or 610mm |
App | Ceilings, Appliances Structural Materials, Commerce, Industries |
Packaging | Container |
Packaging | International standards |
Product | PPGI |
Standard | GBT2518-2008, ASTM A653, JIS G3302-1998, EN 10142-2000 |
Grade | SGCC, DX51D + Z, DX52D + Z, DX53D + Z, DX54D + Z, Q195, Q235, Q345 |
Thickness | 0.1mm-2.0mm |
Width | 600mm-1500mm |
Length | Requirement |
Zinc coating | Z30-Z275g / m2, according to clients' requests |
Surface manipulation | Galvanized, |
App | It is mainly used in construction, manufacturing, iron and steel construction projects, shipbuilding, solar energy support, steel structure engineering, energy engineering, power plants, agricultural and chemical machinery, glass curtain walls, automobile chassis , airports, etc. |
Container size | 20ft GP: 5898mm (Length) x 2352mm (Width) x 2393mm (High) 24-26CBM 40ft GP: 12032mm (Length) x 2352mm (Width) x 2393mm (High) 54CBM 40ft HC: 12032mm (Length) x 2352mm (Width) x 2698mm (High) 68CBM |
Supply capacity | 100,000 tons / month |
